Installation steps
1. Install USB driver for pinpad
• Ingenico 3070 pinpad
a. Download and run CP210xVCPINstaller.exe for 3070 terminal driver.
b. Plug in pinpad.
• Verifone Vx810 pinpad
a. Download to computer.
b. Insert pinpad.
c. When prompted by Windows to install drivers, select VXUART.inf file.
2. Verify which COM port that has pinpad installed.
a. Open Device Manager
b. Select Ports (COM & LPT)
c. Make note of which COM port pinpad is installed.
3. Copy c:\Program Files\Siriusware\Sales\tenderretail\moneris file into c:\moneris.
4. If performing a re-install, delete multi.INI and cctag.INI file in c:\Windows.
5. Run c:\moneris\cctagp1.exe as an administrator
6. Open the Config file (cctag.3070 for the 3070 pinpad or cctag.vx810.66008510.28103767.tips for the vx810 pinpad.)

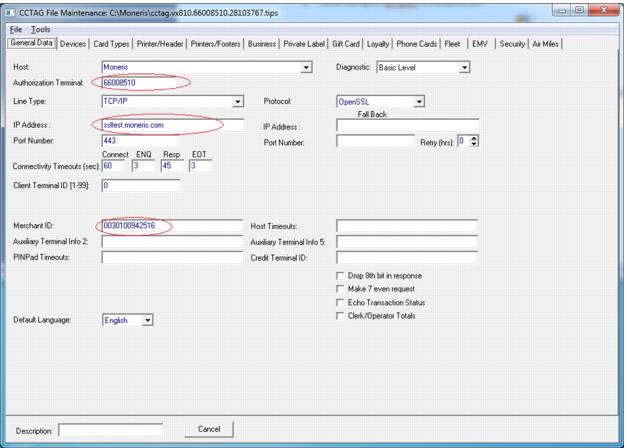

7. Setup
a. Modify the Authorization Terminal with the ECR number that is unique to the pinpad.
b. Modify the IP Address to point to the Moneris processing server. (Typically, it is ipgate.moneris.com.)
c. Modify the Merchant ID for the client that is being installed.

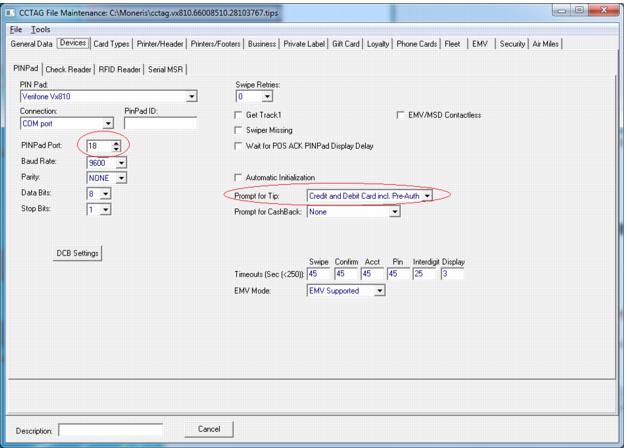

8. Access the Devices tab.
a. Modify the Pinpad Port number to match the port number retrieved in Step number 2 listed above.
b. Set up Tips if required (None for no tips or Credit and Debit Card inc. Pre-Auth if tip prompting is required).
9. Select Accepted Card Types and Floor Limits for each card. Check the Authorize Off Line and Do SAF check boxes if offline processing is required.
10. Select the Printer/Header tab and set up the Credit Card Receipt Header. The highlighted check box is for tips.
11. Save the file under a different name via Menu > File > Save As. Usually this is saved in c:\moneris\cctag.config.
12. Go to Menu > Tools > Create EMV Files. This takes approximately thirty seconds on a slow computer so be patient. If you get an error, most likely you are not running ccragp1.exe as an administrator.
13. Exit the software.
14. Run c:\moneris\testcdcs.exe

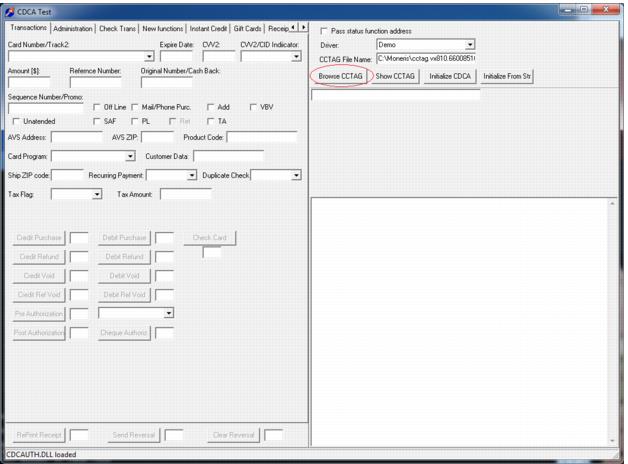

15. Click Browse CCTAG button.
16. Select the cctag.config files saved in step 11 listed above.
17. Click the Initialize CDCA button. This may take a few seconds to initialize.

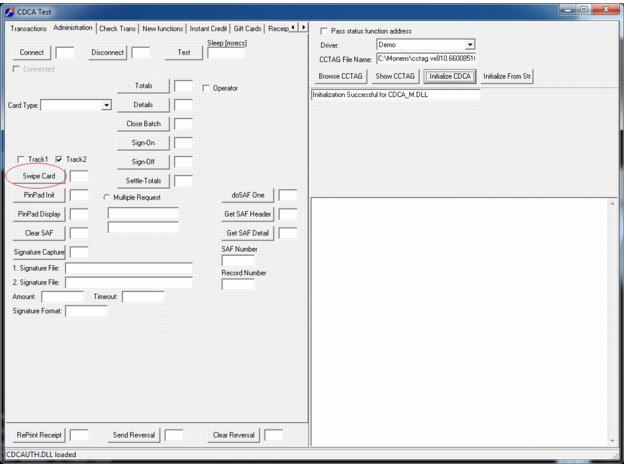

18. Test the Computer – Pinpad connection by pressing the Swipe Card button in the Administration pinpad.
a. After pressing the button, the pinpad asks the user to swipe their card. If this message does not display, it means that the Computer – Pinpad link is bad. Verify that the pinpad is set up as a USB, verify that the driver is installed, and then verify that the COM port number is correct (See Step 8 listed above).
b. Cancel out the swipe card.
19. Click the Pinpad Init button located below the Swipe Card button.
a. The pinpad displays the message, “Downloading.” This process may take a minute so please be patient.
b. If this does not work, check the ECR number, IP Address and the Merchant ID that were entered in Step 7 listed above.
20. Once you have finished installing the pinpad, remove the testcdca.exe program after using it to set up the pinpad.
