Setup

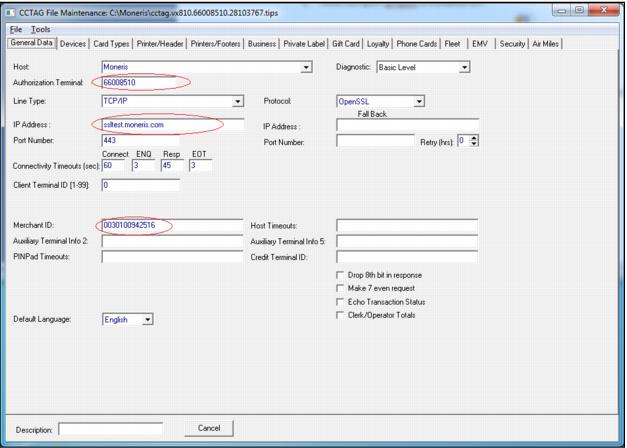

1. Modify the Authorization Terminal with the ECR number that’s unique to a pinpad.
2. Modify the IP Address to point to the Moneris processing server. Typically it’s ipgate.moneris.com.
3. Modify Merchant ID for the client installing the pinpad.

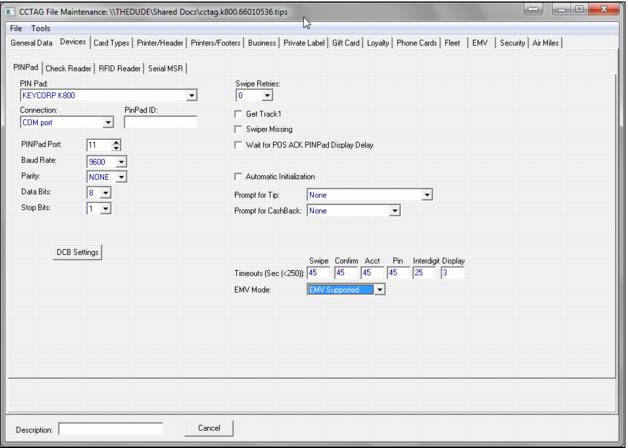

4. Go to the Devices tab.
5. Modify PINPad Port number to match the com port to which the pinpad is installed.
6. None for Prompt for Tip.
7. Ensure EMV Supported is selected for EMV Mode.

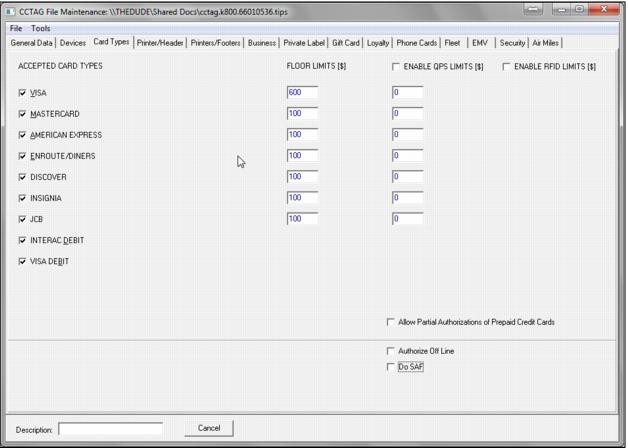

8. Select the Card Types tab.
9. Choose the Accepted Card Types and Floor Limits for each card. Be sure to disable Authorize Off Line if it is currently selected.

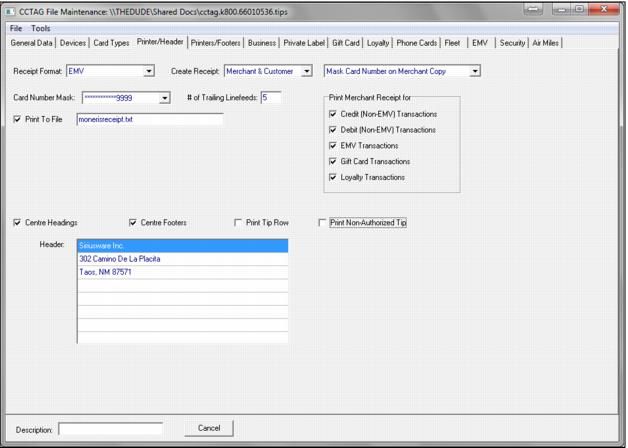

10. Select Printer/Header tab and set up Credit Card Receipt Header. The highlighted check box is for Non-Authorized Tips.
11. Save the file under a different name via Menu (File > Save As). Save as cctag.config in the c:\moneris_K800\ folder.
12. Go into Menu (Tools > Create EMV Files). This can takes about thirty seconds for a slow computer. If you receive an error, you are not running cctagp1.exe as administrator.
13. Exit the software.
14. Run c:\moneris_K800\testcdca.exe

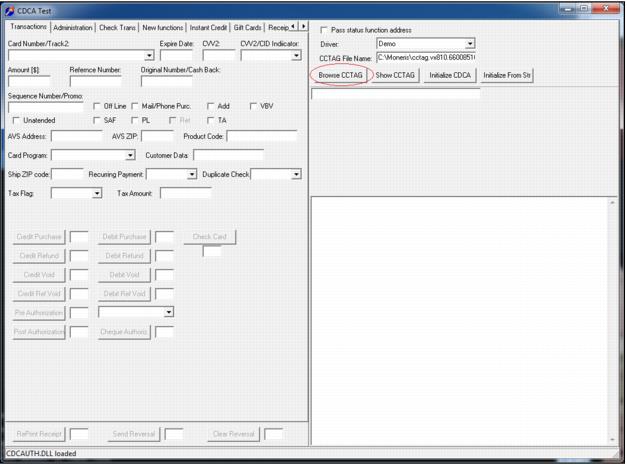

15. Click the Browse CCTAG button.
16. Select the cctag.config file..
17. Click the Initialize CDCA button. Expect this to take a few seconds.

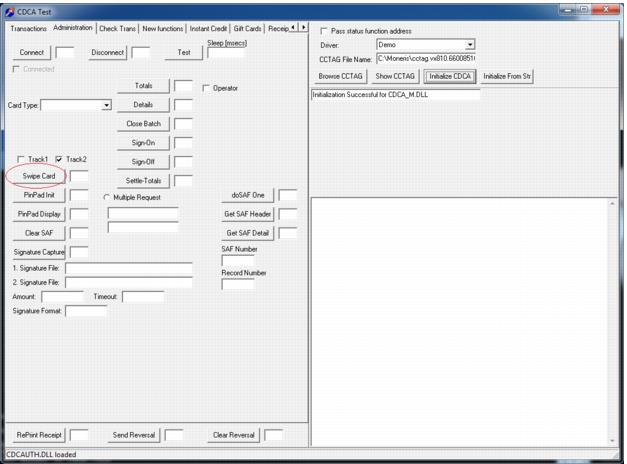

18. Test the PC-pinpad Connection by pressing the Swipe Card button in the Administration pinpad.
19. After pressing the button, the pinpad asks the user to swipe the card. If this does not happen, it means that the PC- pinpad link is bad. Verify pinpad is set up as USB. Verify the driver installed. Verify that the COM port number is correct.
20. Cancel out of the swipe card.
21. Click the PinPad Init button, below the Swipe Card button.
22. The pinpad now displays the message, “Downloading”. This process takes a minute or so. If this doesn’t work, check the ECR number, IP Address and Merchant ID.
23. Set up Sales .INI files
24. Under the Sales32c_system.INI, [Server] section add:
TenderRetailLib=Moneris_K800
iCCTagFile=c:\moneris_K800\cctag.config
25. Under the Sales32c.INI, [Preferences] section, set:
CreditCheq=TRUE
26. Set up credit cards CreditCheq to process credit cards in SysManager. (Activities > Financial List > Payment Types)
27. Once you have finished installing the pinpad, remove the testcdca.exe program after using it to set up the pinpad.
