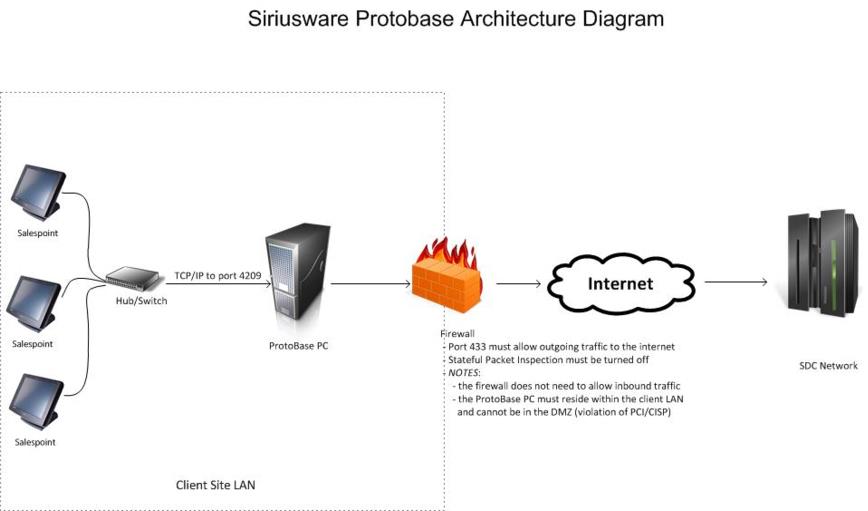

The overall Salesware architecture diagram shows how a credit card processor can be integrated into the Salesware architecture. The majority of clients incorporate the ProtoBase system. The following diagram shows how the ProtoBase system is configured. Hardware requirements for the ProtoBase PC are available from the http://www.protobase.com web site.





Note: Although we use the term, ProtoBase Server, ProtoBase does not require server grade hardware or operating system. Windows 7, both 32 or 64 bit works and Siriusware Inc. recommends 2GByte of RAM and at minimum a Celeron processor and 80 GByte hard drive. ProtoBase requires that their server be a dedicated computer and is not shared with any Siriusware Inc. applications.
